FAQ for Snapmaker 1064nm Infrared Laser Module – Snapmaker

1. What is the actual output power of the Snapmaker 1064nm Infrared Laser Module?

The actual output power of the Snapmaker 1064nm Infrared Laser Module is 2W.

2. Does the Snapmaker 1064nm Infrared Laser Module support camera capture?

No, the 1064nm Infrared Laser Module does not support camera capture. The 1064nm Infrared Laser Module supports the AB position. In Luban, streamline your workflow by selecting points A and B. Instantly define a rectangular area for precise graphic placement during engraving. Simplify your process for flawless results!

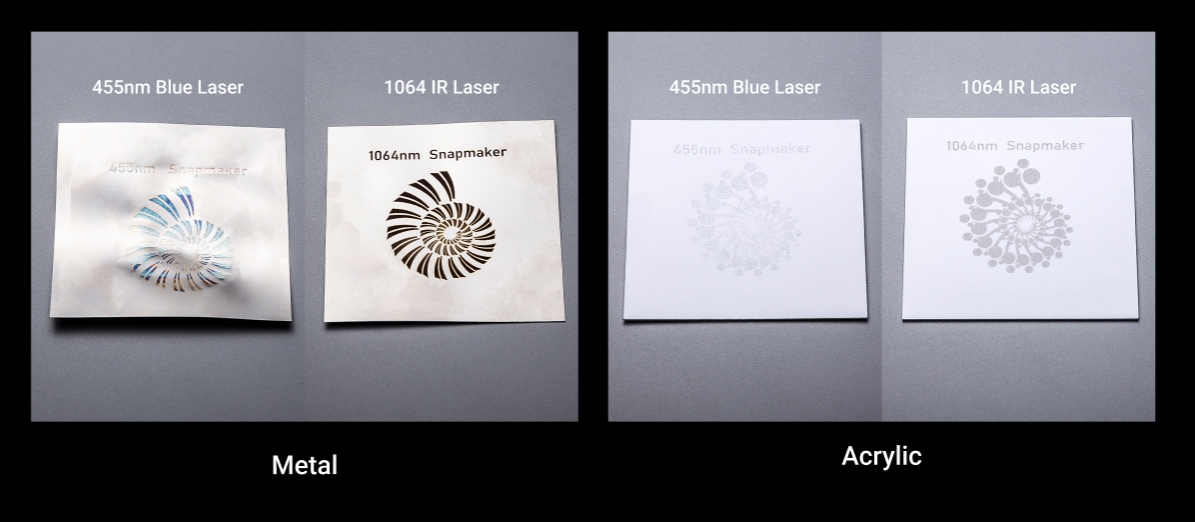

3. Comparison of infrared lasers and blue lasers?

The 1064nm Infrared Laser Module is particularly suited for specific application scenarios, as outlined below:

Fine Work on Metals: While the cutting capabilities of a 2W laser might be limited, it can perform detailed engravings on metal surfaces. This is especially effective for precision markings and intricate decorative details.

Detailed Processing on Plastics: The 2W laser is ideal for performing fine work on various types of plastic materials. It achieves clear engraving results without overheating or melting the material.

4. Do I need to purchase the Quick Swap Toolhead Plate separately if I already own a Snapmaker 2.0 or Artisan?

You do not need to buy the Quick Swap Toolhead Plate separately.

For Snapmaker 2.0, When using the 1064nm Infrared Laser Module with Snapmaker 2.0, you do not need to purchase the Quick Swap Toolhead Plate, regardless of having a Quick Swap Kit or not.

For Artisan, one Adjustable Quick Swap Toolhead Plate will be included with the 1064nm Infrared Laser Module, so there is no need to purchase it separately.

5. Can the 1064nm Infrared Laser Module cut metal?

The 1064nm Infrared Laser Module is not capable of cutting metal. It supports cutting 0.5mm black ABS plastic sheets and black acrylic.

6. I already own a Snapmaker machine. Will there be any discount available for me?

The Snapmaker 1064nm Infrared Laser Module will be offered at a pre-order price from May 7th, therefore additional discounts for users are unavailable.

7. Which materials can be engraved by the Snapmaker 1064nm Infrared Laser Module?

Metal: Painted Metal, SPTE (Steel Plate), Anodized Aluminum, Tinplate, Gold, Silver, Copper, Titanium, Stainless steel, Aluminum Plastic (Opaque)

3D Printing Filament (Dark Opaque): ABS, PLA, PETG Acrylic (White Opaque & Black Opaque)

Others: Leather, Silicone (Dark Opaque), PCB

*Note: more materials are currently being tested, this list will expand.

8. If I intend to use the Snapmaker 1064nm Infrared Laser Module on printers, do I still need to purchase additional accessories?

Model	Purchase List
A150/A250/A250T/A350/A350T	Snapmaker 1064nm Infrared Laser Module Quick Swap Kit(Optional) Enclosure Laser Safety Goggles Note: If you have an enclosure, we recommend purchasing brown laser safety goggles for better protection, but this is unnecessary. If you do not have an enclosure and your laser safety goggles are green, for safety reasons, you must purchase an enclosure or brown laser safety goggles.
Ray	Snapmaker 1064nm Infrared Laser Module Enclosure Note: For better protection, we recommend purchasing an enclosure, but this is unnecessary.
Artisan 3-in-1 Printer	Snapmaker 1064nm Infrared Laser Module Laser Safety Goggles(Optional)
F250/F350	Snapmaker 1064nm Infrared Laser Module Enclosure Laser Engraving and Cutting Platform Laser Safety Goggles Quick Swap Kit(Optional) Note: If you have an enclosure, we recommend purchasing brown laser safety goggles for better protection, but this is unnecessary. If you do not have an enclosure and your laser safety goggles are green, for safety reasons, you must purchase an enclosure or brown laser safety goggles.
Artisan 3D Printer	Snapmaker 1064nm Infrared Laser Module Enclosure Laser Engraving and Cutting Platform Laser Safety Goggles(Optional)

Note:

1) The Enclosure for Artisan is not available for purchase online, if you need it, please contact our customer service team to make a purchase.

2) If you want to use the Quick Swap function for the 1064nm Infrared laser module for 2.0, you can purchase the Quick Swap Kit for Snapmaker 2.0.

3) lf you chose the Artisan model, your order will come with an adjustable version of the Quick Swap Toolhead Plate to make it compatible.

9. Which printers are compatible with the Snapmaker 1064nm Infrared Laser Module?

The Snapmaker 1064nm Infrared Laser Module is compatible with the Snapmaker 2.0(A150/A250/A250T/F250/A350/A350T/F350), Artisan, Ray.

10. Which modules are compatible with the Snapmaker 1064nm Infrared Laser Module?

The Snapmaker 1064nm Infrared Laser Module is compatible with the Rotary Module, Air Purifier, Enclosure, Quick Swap Kit, Emergency Stop Button, and Bracing Kit.

11. What is the work area of the Snapmaker 1064nm Infrared Laser Module?

Model	Work Area
Ray	600mm*400mm
Artisan	400mm*400mm
A350/A350T/F350 without quick swap kit	340mm*350mm
A350/A350T/F350 with quick swap kit	340mm*330mm
A250/A250T/F250 without quick swap kit	240mm*250mm
A250/A250T/F250 with quick swap kit	240mm*230mm
A150 without quick swap kit	150mm*150mm
A150 with quick swap kit	140mm*150mm

12. What is the Maximum Work Speed of the Snapmaker 1064nm Infrared Laser Module?

Snapmaker 2.0: 100mm/s

Artisan: 200mm/s

Ray: 600mm/s

13. What is the Focus Method of the Snapmaker 1064nm Infrared Laser Module?

The focus method of the Snapmaker 1064nm Infrared Laser Module is the Focus Lever.
