FAQ for 200W CNC Module Bundle – Snapmaker

Printer Compatibility

Snapmaker 2.0 A350T/A350/A250T/A250/F350/F250

Artisan

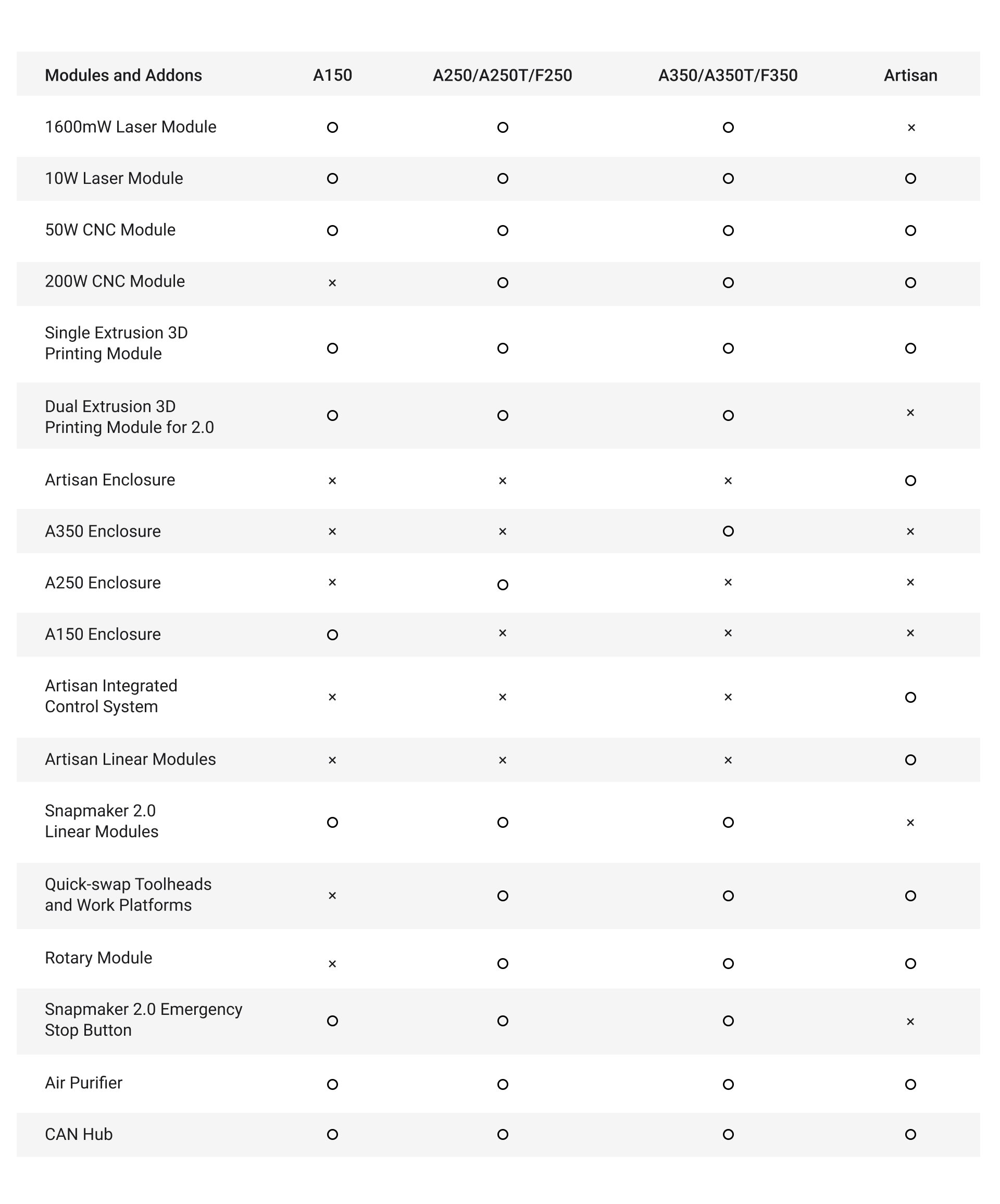

Modules Compatibility

Purchase Tips

If you have	You need to purchase	You will receive
Snapmaker A350T/A350/A250T/A250	Snapmaker 200W CNC Module Bundle for 2.0 A350/A350T/A250/A250T	Snapmaker 200W CNC Module Bracing Kit for Snapmaker 2.0 Linear Modules Power-boosted Toolhead Cable for Snapmaker 2.0
Snapmaker F350	Snapmaker 200W CNC Module Bundle for 2.0 F350	Snapmaker 200W CNC Module Bracing Kit for Snapmaker 2.0 Linear Modules Power-boosted Toolhead Cable for Snapmaker 2.0 CNC Platform (MDF Wasteboard) for Snapmaker A350/A350T/F350 Arched fixture kit CNC Bits(5 Bits) Snapmaker CNC Safety Goggles
Snapmaker F250	Snapmaker 200W CNC Module Bundle for 2.0 F250	Snapmaker 200W CNC Module Bracing Kit for Snapmaker 2.0 Linear Modules Power-boosted Toolhead Cable for Snapmaker 2.0 CNC Platform (MDF Wasteboard) for Snapmaker A250/A250T/F250 Arched fixture kit CNC Bits(5 Bits) Snapmaker CNC Safety Goggles
Artisan 3D Printer	Snapmaker 200W CNC Module Bundle for Artisan	Snapmaker 200W CNC Module CNC Carving Platform for Snapmaker Artisan Arched fixture kit CNC Bits(5 Bits) Quick Swap Toolhead Plate for Artisan Snapmaker CNC Safety Goggles

Difference between the 50W CNC Module and the 200W CNC Module

Supported Materials

Supported Materials (ideal): Hardwood (Beech, Walnut), Softwood, HDF, MDF Plywood, Jade, Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB

Supported Materials (Capable): Aluminum(1000-6000 Series), Brass, Red Copper

Q&A

1. Is the 200W CNC Module of Snapmaker 2.0 compatible with Artisan?

Yes, the 200W CNC Module of Snapmaker 2.0 is compatible with Artisan Printer.

But if you want to use the 200W CNC Module on the Artisan 3D Printer, you also need to purchase the CNC Carving Platform for Artisan, Arched fixture kit, CNC Bits(5 Bits), Quick Swap Toolhead Plate for Artisan, and CNC Safety Goggles.

Official Website Link: https://www.snapmaker.com/

2. Can I use Artisan's 200W CNC Module directly with Snapmaker 2.0?

If you want to use the Artisan's 200W CNC Module on Snapmaker A250/A250T/A350/A350T, you need to purchase the Bracing Kit.

If you want to use the Artisan's 200W CNC Module on Snapmaker F250/F350, you need to purchase the Bracing Kit, Power-boosted Toolhead Cable, CNC Platform, Arched fixture kit, CNC Bits(5 Bits), and CNC Safety Goggles.

Official Website Link: https://www.snapmaker.com/

3. Can I use the 200W CNC Module directly without connecting the Power-boosted Toolhead Cable?

If the Power-boosted Toolhead Cable isn't connected, the port's current is insufficient, and the motor load is too high, potentially causing the port's self-restoring fuse to blow out, leading to the work stoppage.

4. Is the Rotary Module compatible with the 200W CNC Module?

Yes, the Rotary Module is compatible with the 200W CNC Module.

5. If I want to use the 200W CNC Module on Snapmaker 2.0, do I need to use it with the Bracing Kit?

Yes, if you want to use the 200W CNC Module on Snapmaker 2.0, you need to use it with the Bracing Kit.

6. Do I need to purchase the Bracing Kit separately if I buy the 200W CNC Module Bundle for Snapmaker 2.0?

No, the 200W CNC Module Bundle for Snapmaker 2.0 will come with the Bracing Kit, so you do not need to purchase it separately.

7. Why is the 200W CNC Module not compatible with the A150 Printer?

The A150 printer has a single-axis cantilever structure. The support movement of the single Z-axis is not strong enough to run a 200W CNC module.

8. Are the cutter head diameters of the 50W CNC Module and the 200W CNC Module compatible?

Yes, the cutter head diameters of the 50W CNC Module and the 200W CNC Module are compatible.
